{"id":14859502616960,"title":"Genuine Renault Clio 4RS M5M engine","handle":"genuine-renault-clio-4rs-m5m-engine","description":"

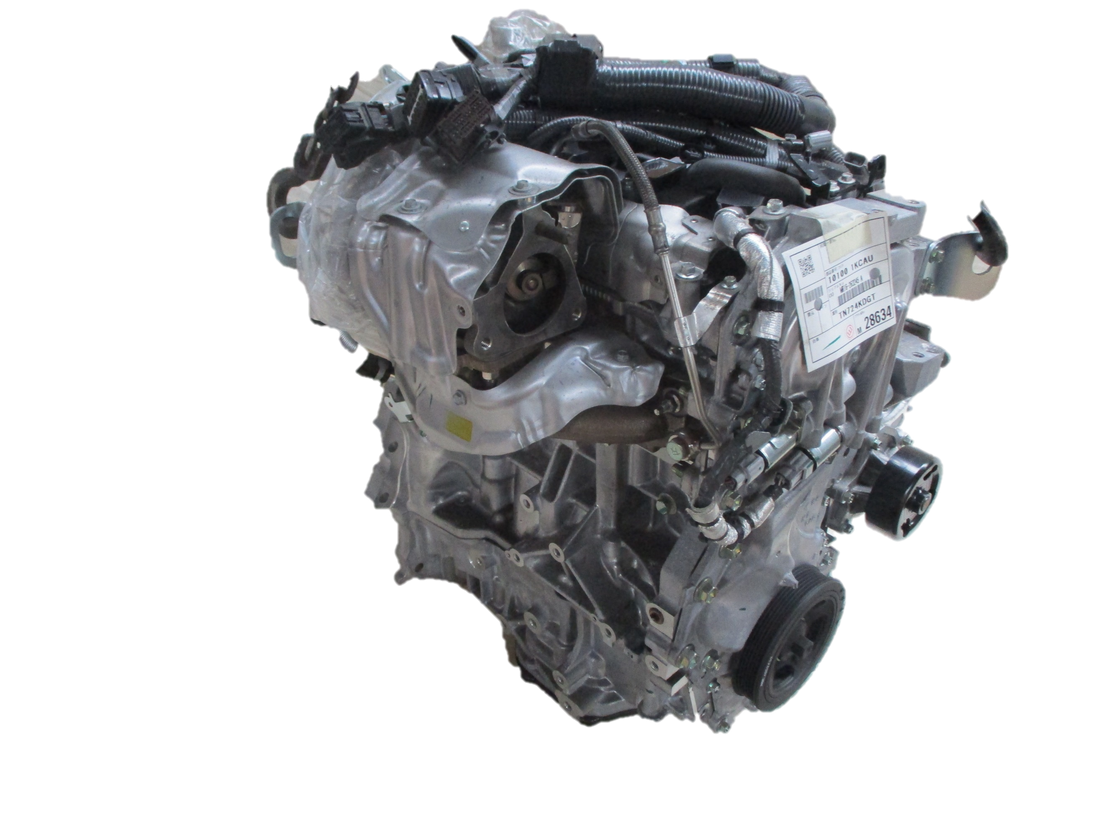

KTEC Racing can proudly supply the Clio 4RS M5M engine. These are also used in a lot of motorsport applications, including the Clio Cup.

These are out of the OEM factory, full units with all accessories Including crank pulley, ECU harness, manifold, turbo, fuel pump, electrics etc.

Nissan MR16DDT / Renault M5M ENGINES
The Nissan MR16DDT is a 1.6 l (1,618 cc, 98.78 cu.in.) straight-four 4-stroke turbo-charged gasoline
engine from Nissan MR-family. The MR16DDT also called DIG-T (Direct Injection Gasoline Turbo-
charged) engine. The MR16DDT engine was co-developed with Renault and in the Renault
production line it is called M5M.
The MR16DDT (M5M) features lightweight alluminium block with fully balanced five-bearings
crankshaft and alluminium head with two camshafts (DOHC) and four valves per cylinder.
Compression ratio rating is 9.5-10.5:1. Cylinder bore and piston stroke is 79.7 mm (3.138 in) and 81.1
mm (3.193 in), respectively. The MR16DDT (M5M) engine has electronic throttle, continuous
variable valve timing system on both shafts (Twin CVTC), electronic ignition with individual coils on
each spark plug, direct injection mechanism and turbocharger.
The power output is from 188 HP (140 kW; 190 PS) at 5,600 rpm up to 215 HP (160 kW; 218 PS) at
6,000 rpm on Nissan Juke RS NISMO. The torque is 240-280 Nm (24.5-28.5 kg·m, 177-206.5 lb·ft) of
torque.
Engine Specifications
Engine code MR16DDT / M5M
Layout Four stroke, Inline-4 (Straight-4)
Fuel type Gasoline (petrol)
Production 2010-
Displacement 1.6 L, 1,618 cc (98.78 cu. in.)
Fuel system Direct injection
Power adder Turbocharger
Power output 188 HP (140 kW; 190 PS) at 5,600 rpm
197 HP (147 kW; 200 PS) at 6,000 rpm
210 HP (157 kW; 214 PS) at 6,000 rpm
215 HP (160 kW; 218 PS) at 6,000 rpm
Torque output 240 Nm (24.5 kg·m, 177.0 lb·ft) at 5,200 rpm
250 Nm (28.5 kg·m, 184.4 lb·ft) at 4,800 rpm
250 Nm (28.5 kg·m, 184.4 lb·ft) at 5,200 rpm
250 Nm (28.5 kg·m, 184.4 lb·ft) at 6,000 rpm
280 Nm (28.5 kg·m, 206.5 lb·ft) at 4,800 rpm
Firing order 1-3-4-2

","published_at":"2024-11-19T12:56:18+00:00","created_at":"2024-11-19T12:56:18+00:00","vendor":"Genuine Renault","type":"Engine","tags":["Clio 4 RS 200 EDC","Engine"],"price":240000,"price_min":240000,"price_max":240000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":52575271485824,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"53398","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Genuine Renault Clio 4RS M5M engine","public_title":null,"options":["Default Title"],"price":240000,"weight":100000,"compare_at_price":null,"inventory_management":"shopify","barcode":"genren-m5m-engine ","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["//k-tecracing.com/cdn/shop/files/NISSAN4_1.png?v=1732019989"],"featured_image":"//k-tecracing.com/cdn/shop/files/NISSAN4_1.png?v=1732019989","options":["Title"],"media":[{"alt":null,"id":63230866227584,"position":1,"preview_image":{"aspect_ratio":1.333,"height":1975,"width":2633,"src":"//k-tecracing.com/cdn/shop/files/NISSAN4_1.png?v=1732019989"},"aspect_ratio":1.333,"height":1975,"media_type":"image","src":"//k-tecracing.com/cdn/shop/files/NISSAN4_1.png?v=1732019989","width":2633}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"

KTEC Racing can proudly supply the Clio 4RS M5M engine. These are also used in a lot of motorsport applications, including the Clio Cup.

These are out of the OEM factory, full units with all accessories Including crank pulley, ECU harness, manifold, turbo, fuel pump, electrics etc.
